Project Description: ALEGrO

BBPlG Project No. 30 (Oberzier – German-Belgian border)

Die Informationsgrafik zum Projekt ALEGrO zeigt im Querformat den Ausschnitt einer blau eingefärbten Deutschlandkarte. Links davon ist auf weißem Hintergrund das belgische Staatsgebiet eingezeichnet. Von der Grenze bis nach Oberzier in Nordrhein-Westfalen ist eine gerade pinkfarbene Linie gezogen.

The map locates the project geographically; it does not show the potential route.

Amprion and the Belgian transmission system operator Elia are together planning the construction of a new, roughly 90-kilometre-long power link between Germany and Belgium. This project is known as the “Aachen Liège Electricity Grid Overlay” – or ALEGrO for short. ALEGrO is to be capable of carrying around 1,000 megawatts (MW) of power. The power line, which is scheduled to be commissioned in 2020, will use high-voltage direct-current (HVDC) transmission technology and be installed as an underground cable.

Necessity

In order for the amount of trade in electricity within Europe to grow, the grid must grow as well. With ALEGrO, we are creating the first direct electricity link between Germany and Belgium and providing urgently needed grid capacities for cross-border electricity flows. At the same time, ALEGrO will strengthen the security of supply in the Aachen-Cologne region.

This project is part of the Trans-European Networks for Energy (TEN-E). The European Commission is supporting the project with funds from the TEN-E programme. The project has also been included in the European Union’s list of “PCI projects” – as a “project of common interest” urgently in need of implementation. Germany’s legislators have also recognised this need and added the project to the Federal Requirements Plan Act (BBPlG) as Project No. 30.

A description of the picture follows:

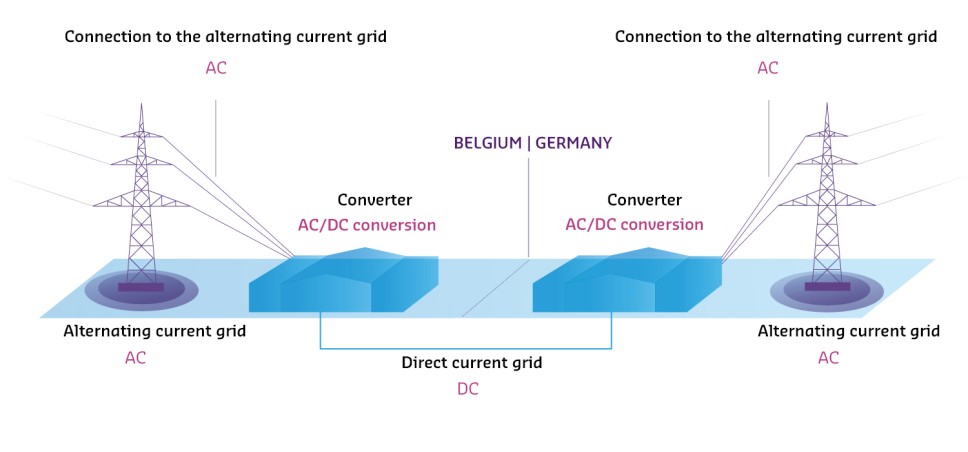

The information graphic in landscape format with white background shows two stylized converters in the middle of the picture. Between them, a thin dotted line represents the border between Belgium and Germany. Below the two converters runs a blue connecting line. Below it is: DC cable (DC). On both sides dotted lines lead from the converters to two stylized masts on the right and left side of the picture. Below each of the masts you will find:

Technology and route

The HVDC link requires a converter station at each end of the line to convert the alternating current to direct current and vice versa. The link is being planned as an underground cable route between the existing 380-kilovolt stations located in Oberzier in Germany (Amprion) and Lixhe in Belgium (Elia) and it will have a total length of some 90 kilometres. The German section will account for around 41 kilometres depending on the final route.

The underground DC cable of ALEGrO will be connected to the German and Belgian AC grids by means of two converter stations – one at either end.
